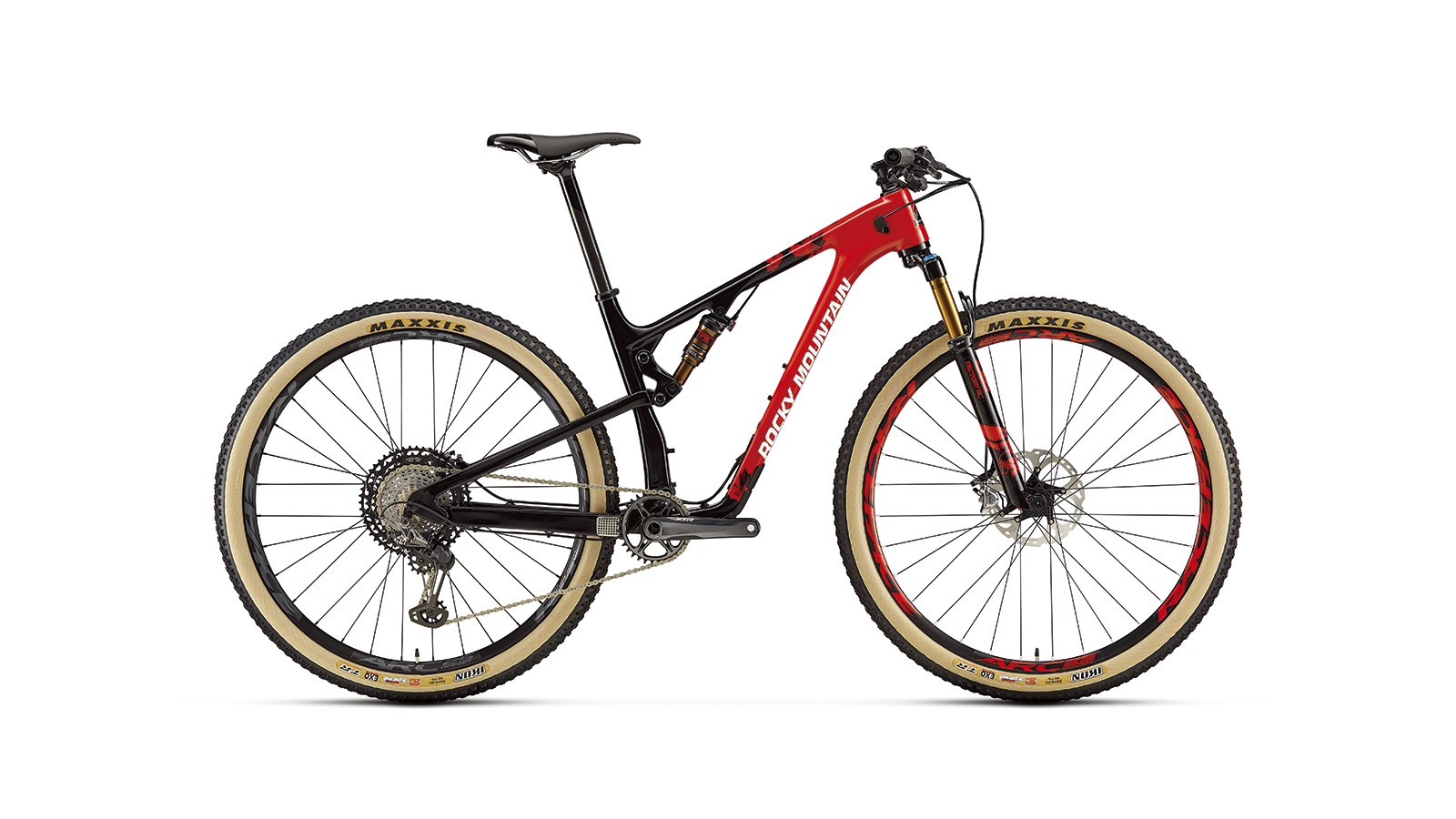

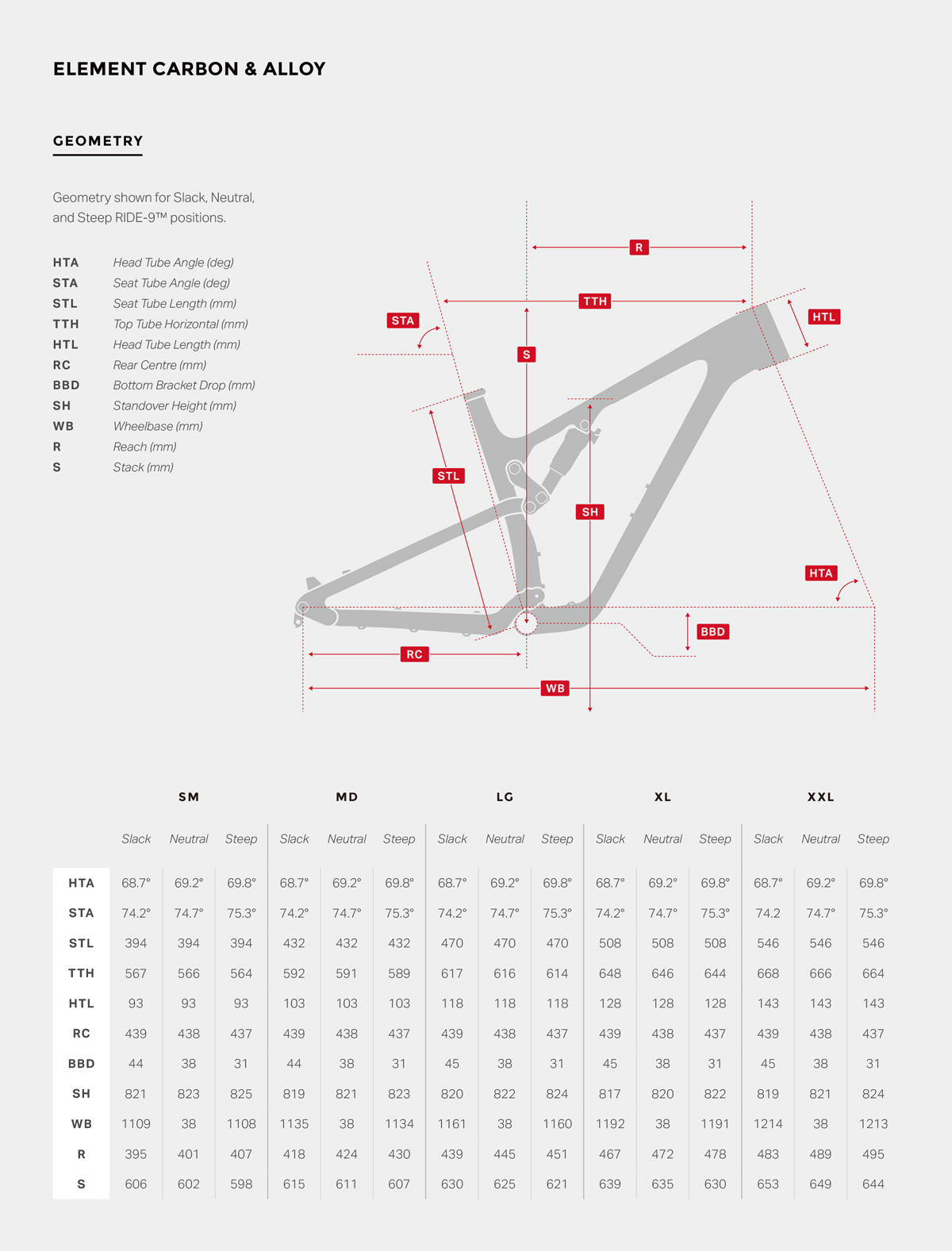

ELEMENT

S M L XL XXL
TTH. Top Tube Length – HORZ (mm) 567mm 592mm 617mm 648mm 668mm
HTA. Head Tube Angle (deg) 68.6° 68.7° 68.7° 68.7° 68.7°
HTL. Head Tube length (mm) 93mm 103mm 118mm 128mm 143mm
STA. Seat Tube Angle – Effective (deg) 74.1° 74.2° 74.2° 74.2° 74.2°
STL. Seat Tube length (mm) 394mm 432mm 470mm 508mm 546mm
RC. Rear Centre (mm) 439mm 439mm 439mm 439mm 439mm
BBD. Bottom bracket drop (mm) 44mm 44mm 45mm 45mm 45mm
R. Reach (mm) 395mm 418mm 439mm 467mm 483mm
S. Stack (mm) 606mm 615mm 630mm 639mm 653mm
SH. Wheelbase (mm) 820mm 820mm 820mm 820mm 820mm
WB. Wheelbase (mm) 1109mm 1135mm 1161mm 1192mm 1214mm
